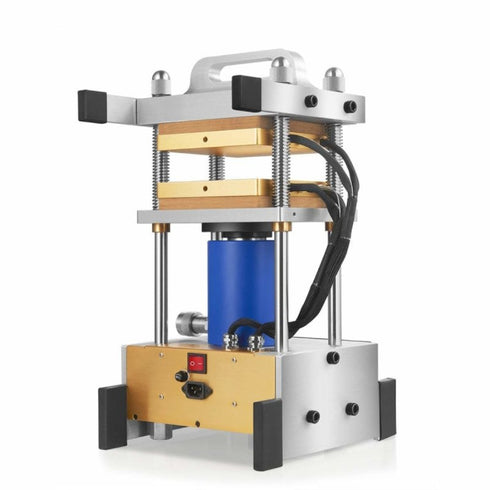

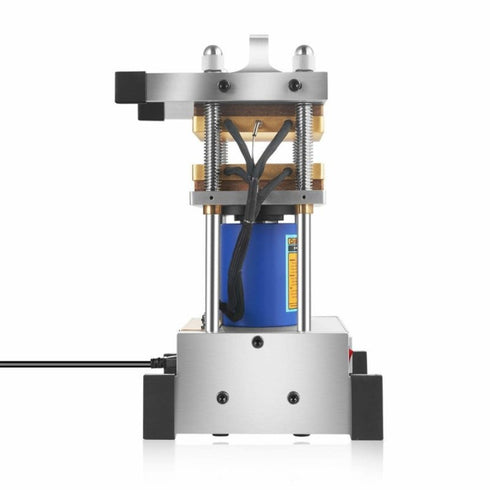

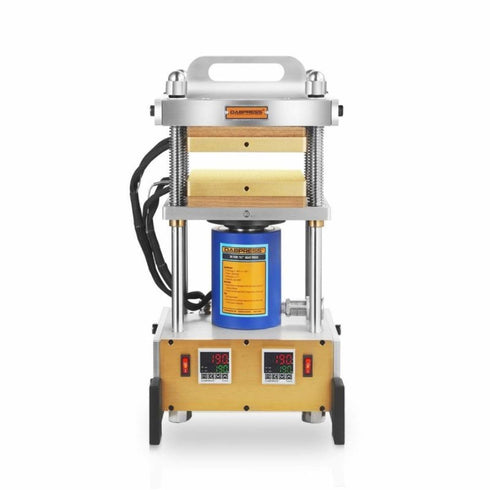

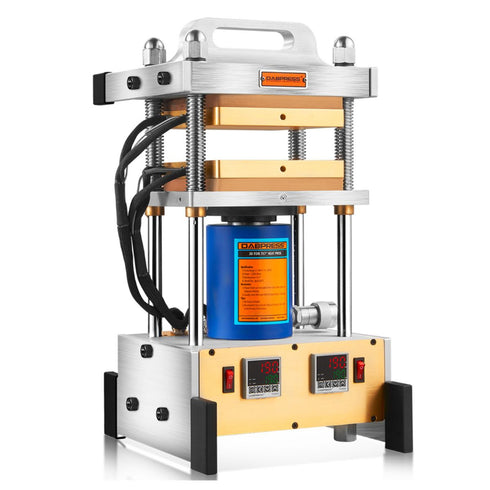

30 Ton Rosin Press - Dual 7x7 Inches Rosin Press Plates and Dual Accurate PID Temp Controllers

Dabpress
dp-hr30t77-110
Out of stock
Large Rosin Press
$1,599.00 $1,399.00

30 Ton Rosin Press - Dual 7x7 Inches Rosin Press Plates and Dual Accurate PID Temperature Controllers

Features:

  • [ Very Durable Mount ] > 84-Pound Heat Press - The mount is made of 6061 aluminum, 4 pieces of chrome steel posts, and a 30-ton cylinder with a large flat saddle. The one-time forming aluminum base makes the equipment overweight, but it also supports the long-term stable operation during the process of extraction.
  • [ 7x7" Sized Heated Platens ] > 7x7" Heated Platens - The big enough plates and the 30-ton force of pressure is able to handle up to 3 ounces of materials, but we still recommend loading several 2x4 press bags, the total weight does not exceed 2 ounces for the better yield.
  • [ Upgraded Temp Controller ] > 4pc Heating Rods - 2 pieces of cartridge heaters for each plate, 300w per heater, 1,200 watts in total, because the heating plate is too large, it will take about 10 minutes to reach 200F.

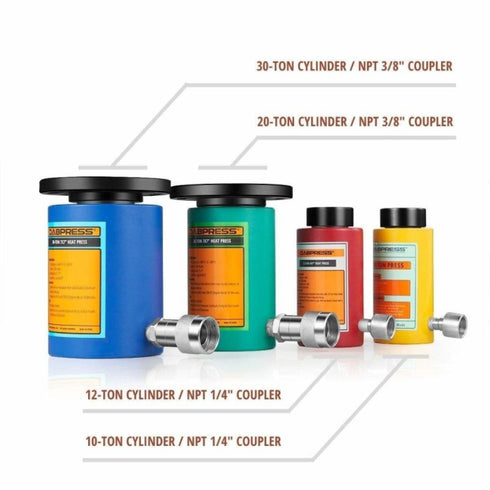

  • [ 30 Ton Cylinder Included ] > 30T Customized Cylinder - It includes an NPT 3/8" female coupler on the cylinder ram, so it allows hooking up the hydraulic hand / electric pump with the NPT 3/8" male coupler, there is a flat saddle on the cylinder ram that helps get the uniform pressure on the pressing bag so as to extend the service life and increase the yield.
  • [ Upgraded PID Temp Controller ] > Accurate Temp Delivered - The 30-ton heat press set up dual upgraded PID temperature controller - replaceable and pluggable, not only detects and delivers the even temperature but also easily replace and maintain.
  • [ No Pump Included ] >We won't sell matching hydraulic pumps currently, but we recommend BVA P1000 or TEMCo hand pumps for pairing.
Specifications:

  • Temperature Range: 0-399F
  • Power: 1,200 Watts
  • Voltage: 110/220 Volts
  • Net Weight: 80 Pounds
  • Working Area: 7" x 7"
  • The Distance/Clearance Between Dual Heated Platens: 50mm/1.96 inches.
  • The Dimension of the 20-ton Press: 11.8" x (W) x 11.2" (L) x 21"(H)
  • The Dimension of the Cylinder:  9 inches in height; 3.5 inches in Diameter
  • It spends 10 minutes to reach setting temp 200F

Pump for Pairing:

  • Dabpress cp700max pump - Shop Now
  • BVA hydraulic hand pump
  • Temco automatic pump
  • How to build manual or electric rosin press - Learn More

How to Avoid the Filter Bags from Blowing out?

  • Remove excess stems from flowers.
  • Use less material in your filter bag.
  • Preheating your material first to get it melty before you begin to apply pressure.
  • Apply the pressure more slowly.

Precaution for Use:

  • My Rosin Press Hydraulic Hand Pump Will Not Maintain Pressure Well, Why? - Learn More
  • Piston Rod of Hydraulic Cylinder Rosin Press Can Lift But It Can Not Move Back Learn More
