DABPRESS Goldrain 10-Ton Rosin Press - Modular 3x5" Dual Heat with DripTek Gravity Flow for Terpene Preservation
You Save: $50.00 (11%)
PRODUCT NOTICE:
DABPRESS GOLDRAIN 10-TON DRIPTECH ROSIN PRESS
11-Ton Max Pressure | Pump Sold Separately | 3x5" Driptech Dual Heat | Personal Commercial
The Goldrain 10 Advantage: Precision Engineering for the Serious Extractor
The DABPRESS Goldrain 10 is the "Scientific Standard" in our modular lineup. Designed for professionals who demand total control, this machine separates the press frame from the hydraulic pump, ensuring zero frame-flex and unmatched pressure stability. Built with 100% Industrial-Grade Metal, it provides a rigid, contaminant-free environment for the purest faint amber extracts.
The Goldrain 10 must be connected to a hydraulic pump to operate, and we recommend pairing it with the DABPRESS Fuerza 12 hydraulic pump for the best performance and pressure control.
Getting the Pressure Right is Everything: If the pressure isn't accurate, you lose flavor, mess up the yield, and ruin the quality - too much or too little pressure means burnt terpenes, less oil, and impurities in your rosin. The Fuerza 12 Hydraulic Hand Pump features international-standard steel-braided high-pressure hoses that minimize hose-expansion errors to the absolute lowest. What you see on the gauge is the true pressure applied - no guesswork, just rock-solid precision on every squeeze.
Product Highlights & Core Features
- 4-Piece Linear Bearing Support: Unlike basic presses, our dual heated plates move on 4 stainless steel posts with linear bearings, ensuring 100% vertical alignment and perfectly even pressure distribution.

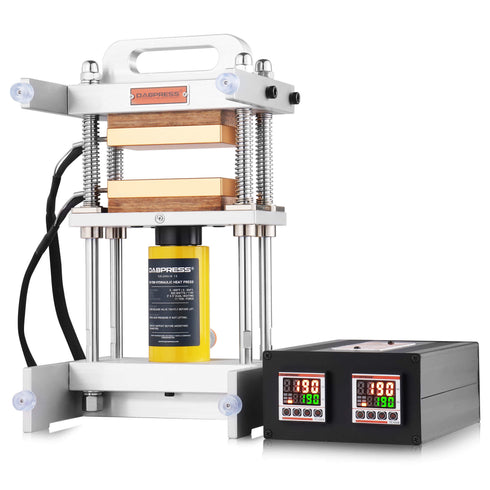

- Industrial 10-Ton Frame: Built with Anodized 6061 Aluminum and solid stainless steel, this frame is rated for 20,000 lbs of force, preventing any warping during high-pressure extractions.

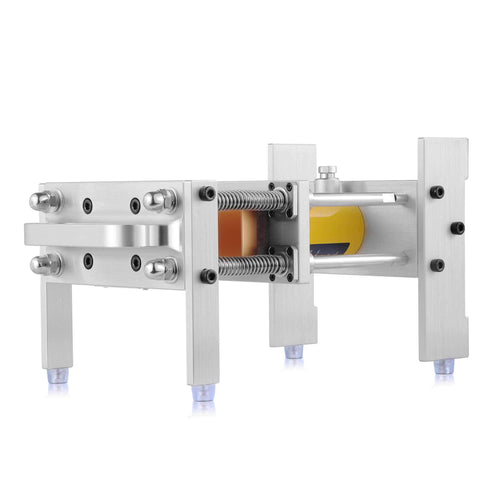

- Gravity-Assisted DripTek™ Ready: The frame is engineered to tilt, utilizing gravity to move rosin away from the heat plates instantly. This preserves fragile terpenes and prevents dark oxidation.
- Superior Bamboo Insulation: Features high-performance natural bamboo insulators. This professional thermal barrier guarantees rapid plate heat-up while protecting the hydraulic cylinder from overheating.
- Modular External Pump Flexibility: Features a standard NPT 1/4" coupler. Pair this frame with any 10-ton hydraulic hand pump (such as the dp-cp590g) to gain precise, gauge-based pressure control.
- Magnetic Workbench Stability: Includes 4 pieces of magnets and feet pads to prevent the machine from shifting or scratching your workspace during high-pressure pumping.
Expert Advice: The Modular Advantage
Operating a 10-ton press with an external hand pump provides a superior tactile feel for material resistance. For best results, follow these professional guidelines:
- Precision Gauge Control: We highly recommend pairing this with a gauge-equipped pump. This allows you to replicate successful "recipes" by hitting exact system PSI numbers.
- The "Sweet Spot": For flower, aim for 1,000–1,500 Platen PSI. The 10-ton cylinder allows for the extremely subtle, slow pressure increases needed to prevent blowouts.
- Proper Alignment: Before applying full force, ensure your puck is centered between the 4 stainless steel posts. The linear bearings handle vertical movement, but centering is key to even yields.
DABPRESS Family Series - 5 Core Models Comparison
| Dimension | Amberigo 4T | Amberflow 6T | Truebar 10T (NEW) | Goldrain 10T | Steamroller 12T |
|---|---|---|---|---|---|
| Official Nickname | Amberigo | Amberflow | Truebar | Goldrain | Steamroller |
| Max Yield Tool | PM30S | PM30S | PM30S / PM4007S | PM30S / PM4007S | PM4007S / PM30S |
| Rec. Capacity | 3.5g - 7g | 7g - 14g | 14g - 28g (1 Oz) | 10g - 14g | 28g - 35g+ |
| Heat Plate Size | 3" x 5" | 3" x 5" | 4" x 7" (Flagship) | 3" x 5" | 4" x 7" |
| Temp Range | 0–399°F | 0–399°F | 0–399°F | 0–399°F | 0–399°F |
| Heating Tech | Dual (500W) | Dual (500W) | Quad (1200W) | Dual (500W) | Quad (1200W) |
| Pressure Gauge | Tactile | Tactile | Integrated Gauge | External Gauge | External Gauge |
| Power Unit | Built-in Jack | Built-in Jack | Integrated 10T | Split Hydraulic | Split Hydraulic |
| DripTech Support | Yes (Backward Tilt) | Yes (Backward Tilt) | Yes (Backward Tilt) | Side Gravity | Side Gravity |
| Construction | Alu/Steel | H-Steel | All-Steel Direct | 4-post | 4-post |
Watch & Learn: Goldrain 10 in Action
Technical Specifications (Goldrain 10)
| Construction | 100% Anodized 6061 Aluminum & Stainless Steel (Zero Plastic) |
| Pressure Capacity | 10-Ton Rated Force (External Pump Required) |
| Plates | 3" x 5" Food-Grade Anodized Aluminum (Non-stick) |
| Machine Net Weight | 34.27 lbs (Modular Stability) |
| Platen Clearance | 32mm / 1.26" (Compatible with all puck heights) |
| Main Piston Diameter | 45mm |
The "Zero-Blowout" Protocol
- Material Prep: Remove all sharp stems from flowers and ensure material is at 62% RH.
- The Melt: Close the plates until they snugly hold the puck. Wait 45-60 Seconds to liquefy before applying full force.
- Linear Compression: Use the external pump to ramp up pressure gradually. Never rush the final saturation point.
- Plate Care: Clean the plates while warm with 99% ISO alcohol to maintain the professional anodized finish.

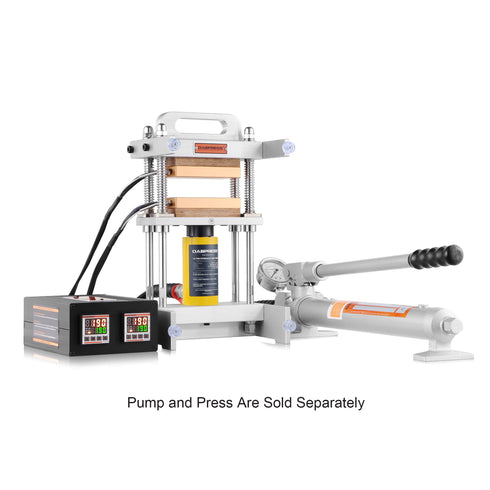

Pump Compatibility: 1. Manual hydraulic pump (Fuerza 12) sold separately 2. This modular frame requires an external 10-ton hydraulic pump. We highly recommend pairing it with the DABPRESS dp-cp590g for integrated gauge control.
USA LOCAL DELIVERY
Ships from our US Local Warehouse (CA / PA).
Estimated 3-5 Business Day delivery to Lower 48 States.
Troubleshooting Collection:
In order to provide rosineer with the best experience, we collected the past complaints in the list; I would also consider it will be helpful for you. We also especially look forward to you sharing your suggestions and comments, and the issues you have encountered to us via support@dabrpess.com (updating).
- My Rosin Press Hydraulic Hand Pump Will Not Maintain Pressure Well, Why?
- Rosin Press Delivered the Inaccurate Temperature After Measuring with My Infrared (IR) Thermometer Gun
- My Bottle Jack Rosin Press Does Not Hold Pressure, Why?
- Why Can't We Use Rosin Press to Produce the Puck of Flower or Hash?
- Piston Rod of Hydraulic Cylinder Rosin Press Can Lift But It Can Not Move Back
- I Would Like to Upgrade Dabpress Rosin Press, Is This possible and Which Parts Would I Need?
- How to Replace the Bottle Jack?
- About 2x4" Rosin Pre Press Mold, Why Is the inside of the Mold Not 2x4"?
- How to Replace PID module?
- My Temp Controller Box Caused the Issue After Changing the Parameters, How to Fix It?
