DABPRESS OmniPress 2-Ton Bench Pre-Press Station - Universal Manual Compactor for Extraction Molds

The BPS01 Advantage: Professional-Grade Stability for Consistent Puck Prep

The DABPRESS BPS01 is an industrial-strength mechanical compaction workstation engineered for growers and extractors seeking flawless prep stability before heat extraction. Powered by a heavy-duty rack-and-pinion transmission and a captive safety lever, it generates up to 2 tons (4,000 lbs) of linear downward pressure with zero hydraulic maintenance. By consolidating loose botanical material into dense, uniform pucks, the BPS01 eliminates internal air pockets and significantly minimizes filter bag blowouts.

Product Highlights & Core Features

• Universal 3.1" (80mm) Open-Pass Base: Features an open-slot base channel that easily accommodates oversized and extended molds. It seamlessly centers standard 2" x 4" and 3" x 5" rectangular molds without binding under load.

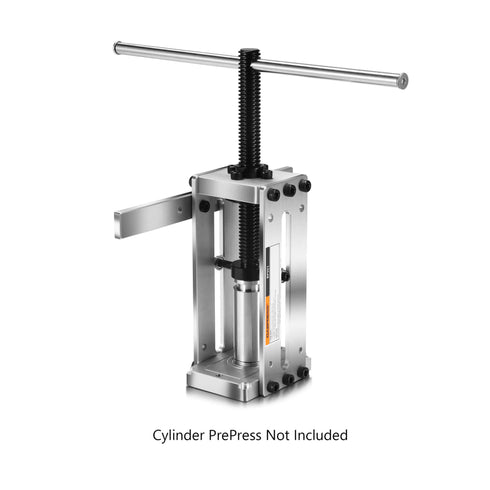

• Generous 5.9" (150mm) Vertical Clearance: A massive 150mm throat height provides ample space to position tall cylindrical molds (such as the PM30S) and multi-tier rectangular units without clearance restrictions.
• Heavy-Duty Rack-and-Pinion Drive: Industrial carbon steel gearing converts smooth handle rotation into 2 tons of linear downward force, compacting high-density pucks with minimal physical exertion.
• Captive Safety Lever Assembly: The double-secured lever handle eliminates unexpected slipping or disengagement during high-leverage strokes, ensuring operator safety and effortless, repeatable cycles.
• Benchtop-Mounted Rigid Stability: Four pre-drilled base holes allow direct bolting to your workstation, completely eliminating wobbling, tipping, or sliding during maximum torque operation.
• 100% All-Metal Integrity: Forged entirely from solid steel and cast iron with zero plastic components, built for years of rigorous daily workshop preparation.

Expert Advice: Professional Puck Compaction Protocols

To achieve clean, rock-solid pucks with the BPS01 station, follow these professional prep guidelines:

• Center Your Mold for Balanced Pressure: Always align your standalone mold directly beneath the rack-and-pinion ram. Centering ensures 100% perpendicular force delivery and prevents premature wear on mold side walls.
• Uniform Loading (Prevent Channeling): Evenly distribute and level loose botanical material before applying downward force. Uneven loading causes internal density variations, leading to blowouts and channeling during heat extraction.
• The 60–90 Second "Dwell" Phase (Prevent Spring-Back): Once full downward compression is applied, hold the material locked for 60 to 90 seconds. This dwell time allows plant fibers to collapse, interlock, and bind, preventing the puck from crumbling or expanding upon release.
• Bolt Down for Optimal Leverage: Secure the unit to a sturdy workbench using the pre-drilled base mounting holes. Delivering 2 tons of force on an unbolted station may cause the base to tip forward during high-torque lever pulls.

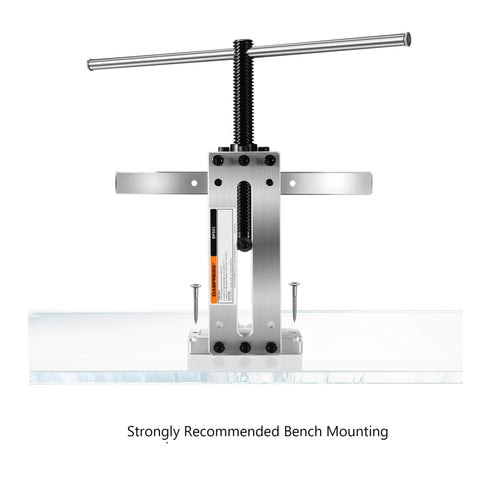

• Bolt Down to Your Workbench (Maximum Stability, Effortless Leverage & Flawless Pucks): We strongly recommend bolting the BPS01 securely to a sturdy workbench using the pre-drilled base holes. Anchoring the station eliminates base lift and frame flex, allowing the mechanical gear ratio to work at peak efficiency with minimal physical effort—ensuring the rock-solid stability needed to produce the flattest, most perfect pucks every time.

DABPRESS Pre-Press Series - 4 Core Models Comparison

Technical Specifications (DP-BPS01)

The "Universal Prep" Protocol

1. Loading: Fill your standalone pre-press mold evenly and level the botanical material carefully.
2. Centering: Place the loaded mold centrally into the 3.1" open base channel, directly under the ram.

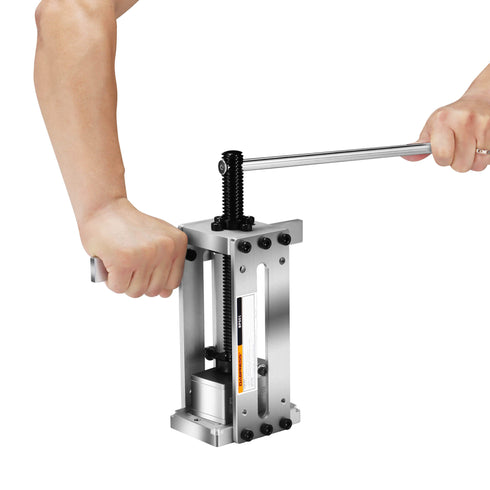

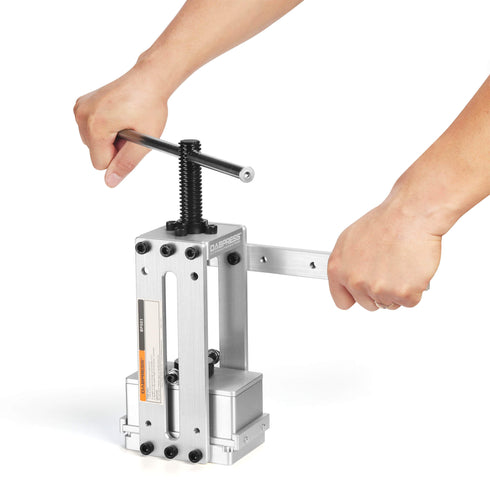

3. Lever Pull: Smoothly pull down the 15.75" lever handle to engage the rack-and-pinion gear. Dwell for 60–90 seconds.
4. Release: Raise the lever to reset the ram, then remove the mold and eject your solid, uniform puck.
