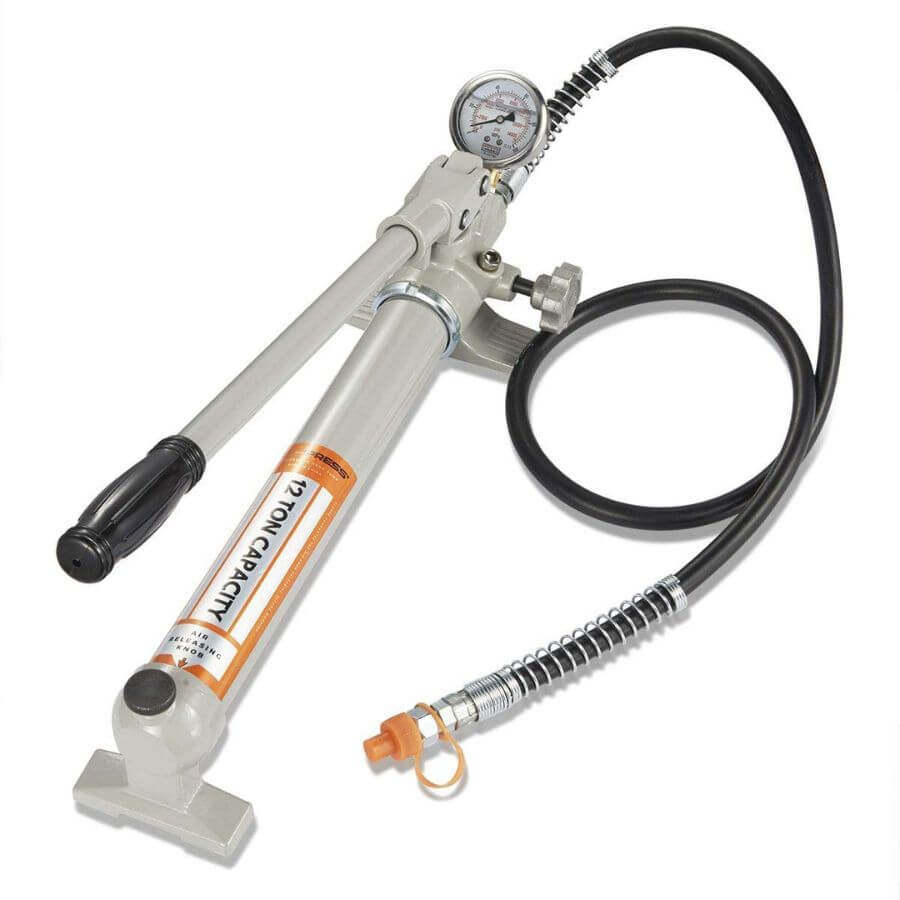

12 Ton Capacity Hydraulic Hand Pump With Gauge - User Manual

User Manual - Hydraulic Hand Pump with gauge (dp-cp590g)

Specification:

- Capacity: 12 Ton
- Coupler: NPT 1/4" Male Included
- Max Pressure: 9500 PSI ( 63Mpa )
- Gross Weight: 8.2kg / 18Lbs
- Length of Hose: 330mm / 13"
- Dimension of Package: 720 x 240 x 230mm / 6.7" x 9.5" x 9"
- Dimension of Pump: 630 x 155 x 170mm / 24.8" x 6.1" x 6.7"

* The hydraulic hand pump included NPT 1/4" coupler is capable of connecting to our 10 & 12-ton rosin press directly. However, It is unable to hook our 20-ton rosin press directly.

Calculations on Pressure Applied:

1 - 10-ton heat press (dp-hr10t35, dp-hr10t35v):

- 2.25 x PSI reading on Gauge = Total Force Delivered
- Total Force Delivered / Puck Surface Area (sq/in) = PSI on the material

2 - 12-ton heat press (dp-hr12t47):

- 2.75 x PSI reading on Gauge = Total Force Delivered
- Total Force Delivered / Puck Surface Area (sq/in) = PSI on the material

* If Pairing to your own hydraulic cylinder, please contact the cylinder manufacturer to obtain the Cylinder's Effective Area to accurately measure the pressure delivered.

How to pair it with a hydraulic heat press machine?

- Please read the owner's manual for the hydraulic hand pump before continuing to the next step for instructions on operation and maintenance.
Tip: The included male coupler should be installed if you are building your own pump, OR if you experience issues with pairing OR operation.
- Move the hydraulic hand pump to the working area and remove the dust cap from the end of the hose.
Tip: Be sure to protect your working area from scratches during operation.
- Attach the hydraulic pump’s hose onto the fitting at the rear of the cylinder until the couplers are full-finger-tightened.
- Open the release valve on the front of the hydraulic hand pump by rotating it counter-clockwise for 1 full turn.
- Keep the release valve open for 2 full minutes.
- Close the release valve on the front of the hydraulic hand pump by rotating it clockwise until fully tight.
- Open the bleed valve on the rear of the hydraulic hand pump by rotating it counter-clockwise for 2 full turns.
- Allow the bleed valve to purge any air from the system for 2 full minutes.
- Close the bleed valve on the rear of the hydraulic hand pump by rotating it clockwise until fully tight.
- Depress the handle on the hydraulic hand pump several times to begin closing the platens on the heat press machine.
- Open the release valve on the front of the hydraulic hand pump by rotating it counter-clockwise for 1 full turn.
- Close the release valve until fully tightened.
- Your hydraulic hand pump is now paired with your heat press machine and ready to begin working.

Important Notices!

- The pressure gauge is only partially filled with glycerine to properly dampen the pointer.
- Maximum pressure delivered 9500 PSI (63 MPa).
- Always wear eye protection.
- Always use the dust cap when disconnected from the hydraulic cylinder to prevent dust and debris from damaging the pump.
- Only use anti-foaming hydraulic jack oil in the hydraulic hand pump.
- Follow the hydraulic hand pump owner's manual for regular maintenance.

Questions & Answers:

Question: Could I change the pressure gauge installed in the hydraulic hand pump?
Answer: No, since this is a proprietary gauge for use on this model hydraulic hand pump.  A secondary gauge can be installed in between the hydraulic hand pump and the hose using our Gauge Kit dp-gk35v.

Question: Is it normal that I lose pressure on the gauge during my pressing time?
Answer: Yes this is normal for the pressure to drop as the essential oils flow.  We suggest slowly applying pressure to regain your desired pressure on the gauge.

Question: Is it normal for fluid to leak when I disconnect the hydraulic hand pump from the cylinder?Answer: Yes, usually a few drops will leak out as the couplers detach.  We suggest keeping a paper towel underneath the couplers to catch any oil that may fall.

Question: How do I add more hydraulic jack oil to my pump?
Answer: Since the pump is already filled at the factory, it is only recommended to change out the fluid as per the owner's manual recommendation.  Please review it before adding oil to the pump.

Question: How to calculate the actual PSI on my material?
Answer:
(1) for 10-ton cylinder ( dp-hr10t35 & dp-hr10t35v ) – 2.25 x PSI on the gauge = Total Force Delivered; Total Force Delivered / Surface Area of Material (sq/in) = PSI at the material;
(2) for 12-ton cylinder ( dp-hr12t47 ) – 2.75 x PSI on the gauge = Total Force Delivered; Total Force Delivered / Surface Area of Material (sq/in) = PSI at the material

Question: How much PSI should I use on my material?
Answer:
(1)for flowers - the suggested range is between 800-1200 PSI for the material.
(2)for fine material – the suggested range is between 400-600 PSI at the material.

Question: Can I use less than 10000 PSI-rated equipment to pair to the hydraulic hand pump?
Answer: No, you should only pair hydraulic equipment to your heat press machine which is rated at 10000 PSI operating capacity or higher.

Troubleshooting:

1 - The hydraulic pump will not hold pressure?

- Bleed the hydraulic pump of air through the valve.
- Insure both the release valve and the bleed valve are tightly closed.
- Ensure the quick couplers are fully hand-tightened together.
- You may need to replace the stainless steel ball-bearing inside of the release valve. * Please review our video information on how to complete it.

2 - My rosin press hydraulic hand pump will not maintain pressure well, why? Learn More

3 - The piston rod of the hydraulic cylinder rosin press can lift but It can not move back Learn More
