10-Ton Portable Tabletop Driptech Hydraulic Heat Press Kit - No Pump

In stock

Hydraulic Heat Press

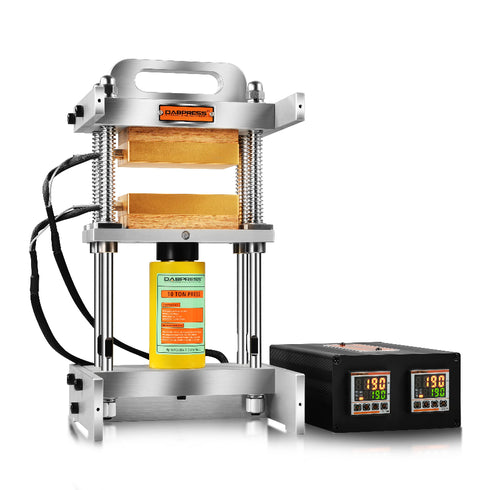

Mini Heat Press Kit | Dabpress dp-hr10t35v 10-Ton Hydraulic Cylinder Rosin Press  | 3x5" Anodized Dual Heating Plates | Perfect Alignment | Quick Heating - 1/4" NPT Quick Coupling, Well Pairs to 10-ton Porta Power Hand Pump with Dabpress Gauge Kit.


  • Perfect Alignment of Top and Bottom Heat Platens - 4 Piece Linear Bearings Guarantee Great Line-up; Frame Made of 6061 Aluminum, Stainless Steel Pillars,10-Ton Hydraulic Cylinder, and Durable PID Temp Controller Box.
  • Pairs Well with a Variety of 10 Ton Hydraulic Pump Configurations - The Machine Includes Quick Couplers Compatible to 1/4" NPT Hydraulic Pumps Such As Porta Power, or Build Up Your Own Pump (DIY).
  • Drip Technology Integrated - Driptech System Allows Oil to Drip Down Onto Parchment Paper Below, Preserving the Terpenes.
  • Great Insulation Performance - Heating up Quickly to Reach Pre-set Temperature in Minutes; Protects the Hydraulics from Overheating.
  • 3x5" Portable Small Heat Press - Easy to Move, and Perfect for Industrial or Personal Use in A Small Apartment, 3x5" Plates Are Common Size and Well Suited with 3.5g - 28g Batches.  Fits Easily on 2x2' Work Table.
  • 4 Magnets and 4 Feet Pad - Two Magnets Installed on the Frame, Other Two Magnets Included in the Package; 4 Pieces of Feet Pad Included in the Package to Prevent Scratches on the Working Table.

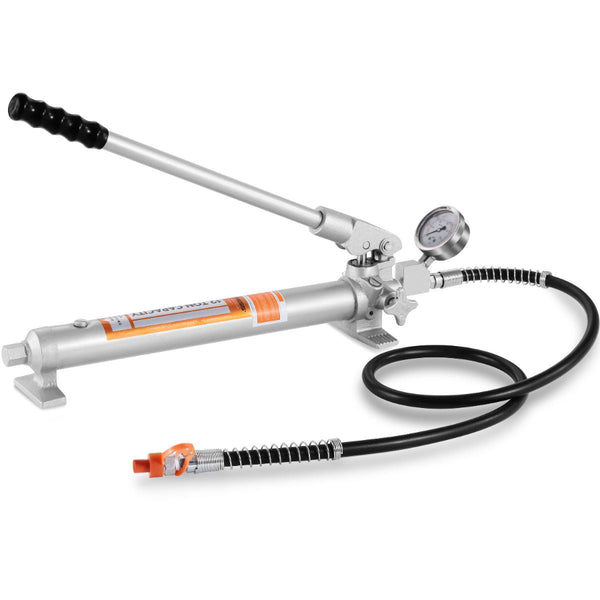

Pump Recommended:

         North America Customer -  We recommend Porta Power 10-Ton Pump and Dabpress Gauge Kit (some assembly required)

* No Gauge on Your Pump?  Check Out Our Pressure Gauge Kit for 1/4" NPT Pump - $29.99 | Dabpress Pressure Gauge Kit | Available on Dabpress.com

         Build Up 1/4" NPT Hydraulic Hand Pump with Gauge (DIY) - Watch the Video as Shown Below.

 Build Up BVA Hydraulics P350 Hand Pump with Gauge (DIY) - Watch the Video as Shown Below.

          Europe Customer - 10 TON Hydraulic Hand Pump Hose & Gauge Porta Power

              Australia Customer - Manual Hydraulic Pump Aluminum Alloy with gauge

          Parts Needed To Build Your Qwn 10-Ton Hydraulic Hand Pump With Gauge:


          • Temperature Range: 0-399F
          • Power: 500 Watts
          • Voltage: 110 Volts [220 Volts Is Available on Official Store]
          • Total Weight: 32.1 lbs
          • Package Dimension: 20.4" x 13.3" x 12.9"
          • Frame Dimension: (H) 40cm x (W) 23cm x (D) 21.5cm
          • PID Temp Controller Box Dimension: (H) 21.5cm x (W) 15cm x (D) 8.3cm
          • Pressing Area: 3" x 5"
            Packing List:

            • 1 x Mini Hydraulic Heat Press Kit
            • 1 x Instruction Manual
            • 1 x Non-stick Silicon Mat

              • Pair It with a Porta Power Hydraulic Hand Pump. 1/4" Male and Female Couplers Included in the Package (one attached to Cylinder).
              • Highly Recommend to Watch Videos about "How To Use Heat Press Bag and Pre-Press Mold Effectively" from Our Website
              • Recommend dp-pm3015r Cylinder Pre-press Mold to Pair with This Hydraulic Rosin Press Kit
              • Recommend dp-bt160ns Rosin Press Filters - 160-micron bag for flower.

              • One Person Operation
              • Keep It out of Reach of Children

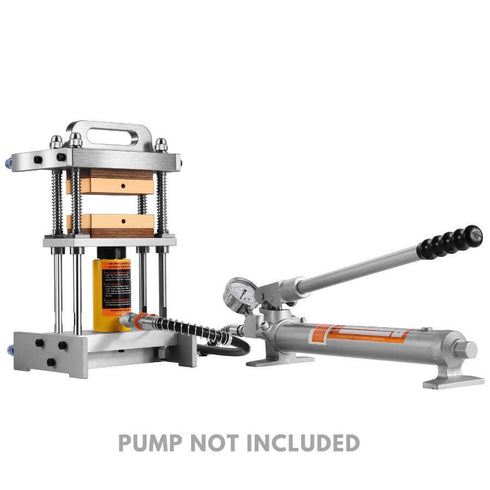

              • No Pump Included
              • Please Attach The Included Fitting Onto End Of Hydraulic Hose To Ensure Proper Function Of Quick Couplers.
              • If Pairing to BVA Hydraulics Hand Pump, Be Sure To Order All Necessary Parts To Build It Up (DIY)
              PID Controller Setting:

              • Press "SET" button to activate temperature controller
              • Press ◄ button to increase and decrease the value at hundreds, tens and ones places
              • Press ▼ or ▲ from 0-9 for your desired temp
              • Press "SET" button to lock the desired temperature in place

              How To Build Your Own Pump With Gauge:

              Tech Support: dp@dabpress.com



              Customer Reviews

              Based on 11 reviews Write a review

              QUESTIONS & ANSWERS

              Ask a Question
              • what is the power wattage per plate?

                250 watts per heating rods, 500 watts in total. It reaches setting temp about 4 mins. Thank you!

              • When are you going to start getting some of these presses back in stock? Half of your inventory has been gone for a while. The European plug model doesn't help.

                10-Ton hydraulic cylinder rosin press is available now. Thank you!

              • How do you use this to make wax ? Are there complete instructions on how to use this machine

                Thanks for your question! It is a solventless extractor to flower,bubble hash,dry sift etc.

              • I have the dp-bj6t35 and use pre cut 7x10 inch wide parchment paper. This press looks less wide, will 7 inch wide parchment fit? Thanks

                Hello! Thanks for your reaching out right here. I recommend you pre-fold the parchment paper into a tube. When you see the rosin coming out, please tilt the unit forward (driptech). The rosin will drip on the paper under the unit.

              • Can you get this with the 3x7 cage plates?

                Thanks for your question! We can't rebuild it into 3x7" plates.

              • What would I need to get it to work with the pump linked to in this question? Just got mine and can't find any of the suggested pumps in stock: https://www.prolinemax.com/MH3-Manual-10000-PSI-Air-Hydraulic-Hand-Pump-Pressure-auge-72-Hose-Coupler_p_2712.html

                Dear Michael, Thanks for your reaching out right here. I got the response from Stongway Support. 10-Ton hydraulic pump with a pressure gauge will be available on Mid-January, 2019. Could you please start pressing with stongway 10 ton pump without a gauge? and you can replace it once the pump with gauge is available? Merry Christmas! Best regards, Dabpress Team

              • I have the Strongway pump that is recommended to buy what PSI on the gauge should it be reading while I am pressing flower?

                It depends on how big is your pucks. Usually, 4k-5k is the normal psi at the end of rosin bags.

              • Is in this product realy no pump included? I cant find a pump on your site seperate.

                Pump Recommended:

                To North America Customer -  Hydraulic Pump with Gauge and Hose - 10-Ton Capacity $79.99 |  Buy Strongway Pump with Guage Off Amazon  $79.99 |  Buy Strongway Pump with Guage Off Northen Tool $49.74 | Porta Power Pump w/o Gauge Off eBay.com To Europe Customer - 10 TON Hydraulic Hand Pump Hose & Gauge Porta Power

                £90.00 | Buy Porta Power Pump with Gauge Off eBay.co.uk €57.81 | HBM 10 Ton Hydraulic Pump with Manometer To Australia Customer - Manual Hydraulic Pump Aluminum Alloy with gauge $101 | Buy The Pump with Gauge Off Aliexpress.com AU $401.99 | Electric Driven Hydraulic Pump 10000 PSI 70Mpa
